Part no.: 99 6155 000 06

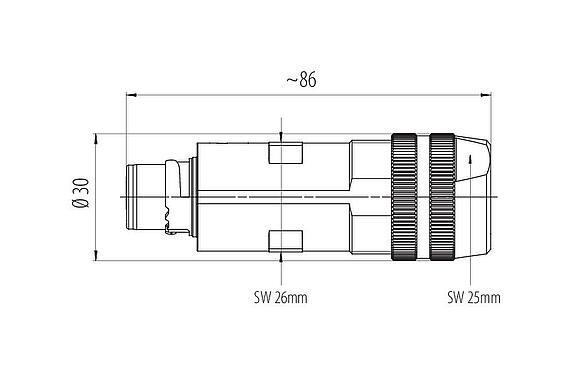

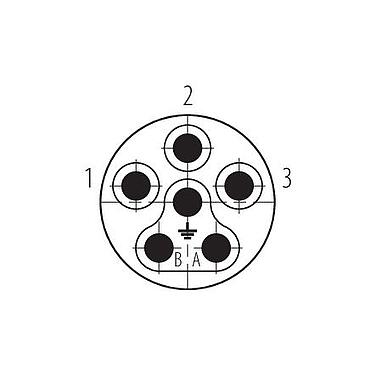

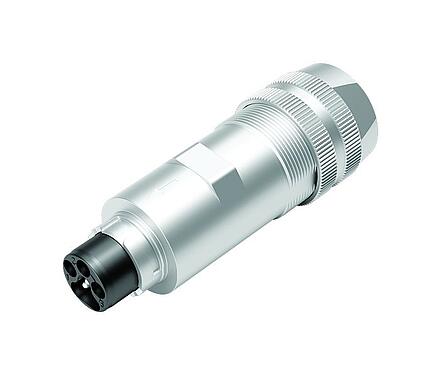

Bayonet Male cable connector, Contacts: 6 (3+PE+2), 7,0-14,0 mm, shieldable, screw clamp, IP67 plugged and locked
PBC15, series 615, Power Connectors
3D View(Click to activate)
General features
Moreless| Part no. | 99 6155 000 06 |
| Connector design | Male cable connector |
| Type standard | DIN EN IEC 61076-2-116 |
| Version | Field-wireables |
| Connector locking system | Bayonet |
| Termination | screw clamp |
| Degree of protection | IP67 plugged and locked |
| Cross-sectional area | max. 2.50 mm² / max. AWG 14 |
| Cable outlet | 7,0-14,0 mm |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 106.09 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | Power: 630 V, Signal: 63 V |
| Rated impulse voltage | Power: 6000 V, Signal: 1500 V |
| Rated current | Power: 16 A, Signal: 10 A |
| Insulation resistance | > 108 Ω |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | II |
| EMC compliance | shieldable |
Material
Moreless| Housing material | Zinc die-cast nickel-plated |
| Contact body material | PA |
| Contact material | CuZn (brass lead-free) |
| Contact plating | Ag (silver) |
| Locking material | Zinc die-cast nickel-plated |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | bf738e84-eb5a-4a03-a828-6a262a6de297 |
