  2. Miniature connectors
  3. M16 IP40
  4. M16 Female cable connector, Contacts: 2 (02-a), 4.0-6.0 mm, shieldable, solder, IP40
Part no.: 99 2002 09 02

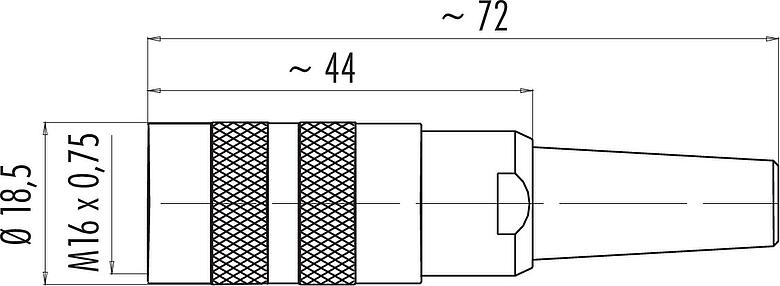

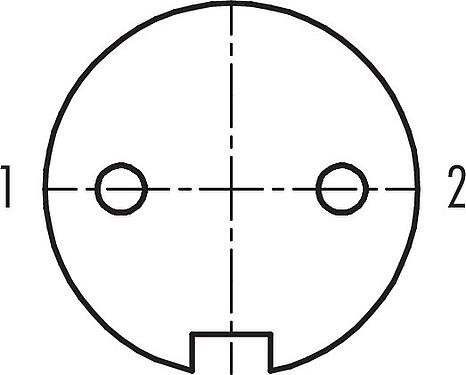

M16 Female cable connector, Contacts: 2 (02-a), 4.0-6.0 mm, shieldable, solder, IP40

M16 IP40, series 581, Miniature Connectors
Compare product
Downloads
General features
Moreless
Part no. 99 2002 09 02
Connector design Female cable connector
Type standard DIN EN 61076-2-106
Version Connector socket straight
Connector locking system screw
Termination solder
Degree of protection IP40
Cross-sectional area max. 0.75 mm² / AWG 18
Cable outlet 4.0-6.0 mm
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 27.82
Customs tariff number 85369010
Country of Origin DE
Rated voltage 250 V
Rated impulse voltage 1500 V
Rated current 7.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance shieldable
Shield connection Solder lug
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 58a839f3-e88f-4820-bd51-1b51b7756887
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  7. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
