Mounting wrench
M12-A/B/D/K/K/L/S/T/US/X / AS-Interface - installation spanner with torque limitation 0.6 Nm, SW 13 mm; series 713/715/722/763/766/775/813/814/815/825/866/876

Part no.: 07 0086 000

M12-A/B/D/K/K/L/S/T/US/X / AS-Interface - installation spanner with torque limitation 0.6 Nm, SW 13 mm; series 713/715/722/763/766/775/813/814/815/825/866/876

series 713/715/722/763/766/775/813/814/815/825/866/876, Accessories

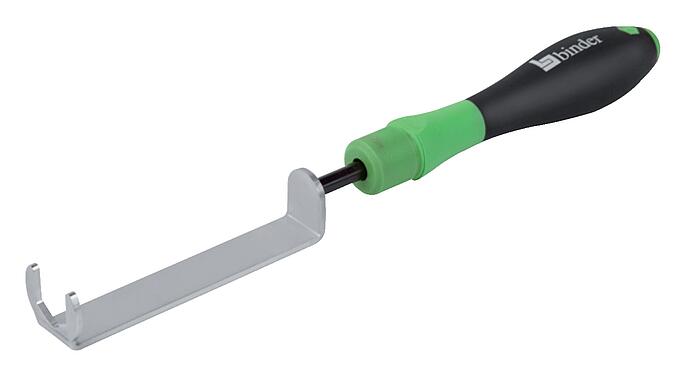

Illustration 07 0086 000 - M12-A/B/D/K/K/L/S/T/US/X / AS-Interface - installation spanner with torque limitation 0.6 Nm, SW 13 mm; series 713/715/722/763/766/775/813/814/815/825/866/876 — Illustration

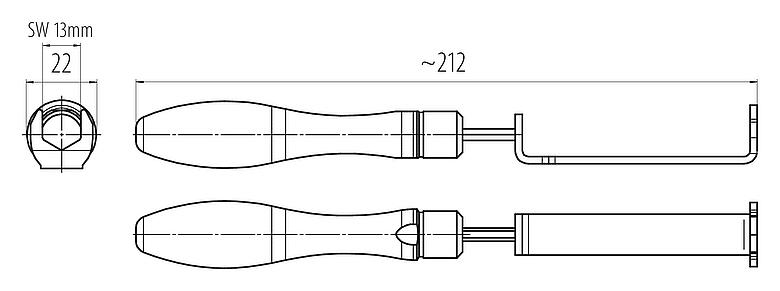

Scale drawing 07 0086 000 - M12-A/B/D/K/K/L/S/T/US/X / AS-Interface - installation spanner with torque limitation 0.6 Nm, SW 13 mm; series 713/715/722/763/766/775/813/814/815/825/866/876 — Scale drawing

Part no.	07 0086 000
Width across flat	SW 13
Torque	0.6 Nm
Weight (g)	89
Customs tariff number	85369010
Country of Origin	DE

eCl@ss 11.1	27-44-01-92

Report error on this page

Security notices

The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.

Downloads

Data sheet 07 0086 000

STP-Data 07 0086 000
