M9 Female panel mount connector, Contacts: 3, unshielded, solder, IP67, front fastened

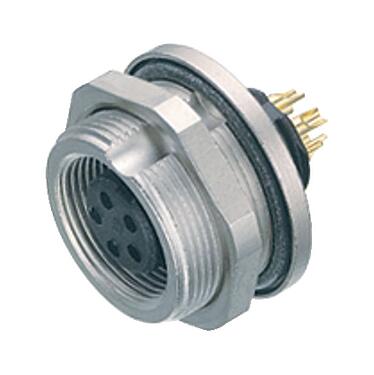

Illustration 09 0408 80 03 - M9 Female panel mount connector, Contacts: 3, unshielded, solder, IP67, front fastened — Illustration

3D View 09 0408 80 03 - M9 Female panel mount connector, Contacts: 3, unshielded, solder, IP67, front fastened — 3D View

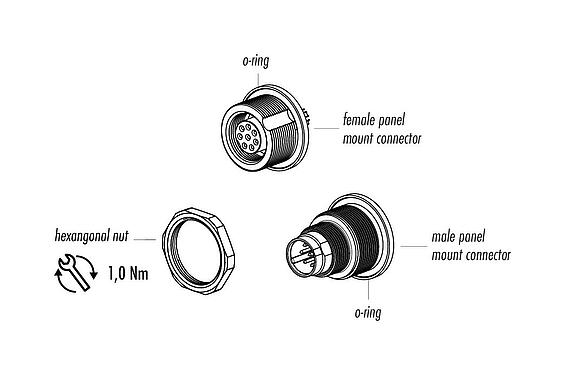

Component part drawing 09 0408 80 03 - M9 Female panel mount connector, Contacts: 3, unshielded, solder, IP67, front fastened — Component part drawing

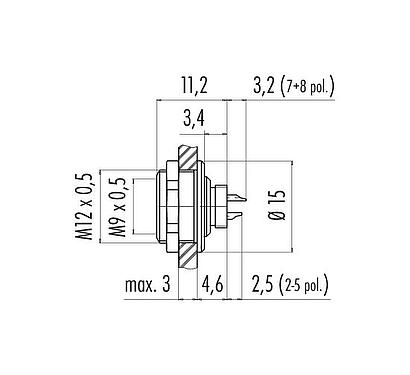

Scale drawing 09 0408 80 03 - M9 Female panel mount connector, Contacts: 3, unshielded, solder, IP67, front fastened — Scale drawing

Assembly instructions / Panel cut-out 09 0408 80 03 - M9 Female panel mount connector, Contacts: 3, unshielded, solder, IP67, front fastened — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) 09 0408 80 03 - M9 Female panel mount connector, Contacts: 3, unshielded, solder, IP67, front fastened — Contact arrangement (Plug-in side)

Part no.	09 0408 80 03
Connector design	Female panel mount connector
Version	Connector socket straight
Connector locking system	screw
Termination	solder
Degree of protection	IP67
Cross-sectional area	0.25 mm² / AWG 24
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	5.26
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	125 V
Rated impulse voltage	1500 V
Rated current	4.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	II
Insulating material group	III
EMC compliance	unshielded

Contact body material	PA (UL94 V-0)
Contact material	CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	6aae056f-a979-4926-90e6-a841e980c8ab

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569
