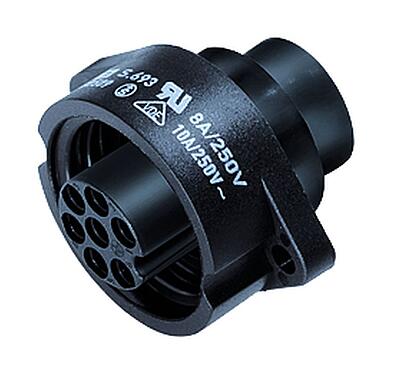

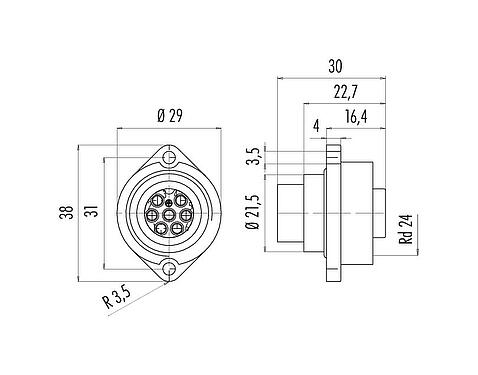

  4. RD24 Female panel mount connector, Contacts: 6+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL, ESTI+, VDE
Part no.: 09 4204 00 07

RD24 Female panel mount connector, Contacts: 6+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL, ESTI+, VDE

RD24, series 693, Power Connectors
Compare product
Downloads
General features
Moreless
Part no. 09 4204 00 07
Connector design Female panel mount connector
Version Connector socket straight
Connector locking system screw
Termination crimping (Crimp contacts must be ordered separately)
Degree of protection IP67
Cross-sectional area click here for more info
Temperature range from/to -40 °C / 100 °C
Mechanical operation > 500 Mating cycles
Weight (g) 12.31
Customs tariff number 85369010
Country of Origin DE
Rated voltage 250 V
Rated impulse voltage 4000 V
Rated current 10 A (8 A UL)
Insulation resistance ≥ 1010 Ω
Pollution degree 3
Overvoltage category III
Insulating material group III
EMC compliance unshielded
Housing material PA
Contact body material PBT
Contact material depending on crimp contact (accessory)
Contact plating Ag (silver)
REACH SVHC None (No pollutants)
SCIP number SCIP-number not available
Approvals UL, ESTI+, VDE
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
