  2. Miniature connectors
  3. M16 IP40
  4. M16 Female panel mount connector, Contacts: 8 (08-a), unshielded, solder, IP40, front fastened
Part no.: 09 0474 89 08

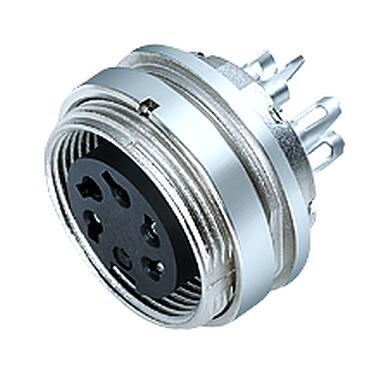

M16 Female panel mount connector, Contacts: 8 (08-a), unshielded, solder, IP40, front fastened

M16 IP40, series 680, Miniature Connectors
Compare product
Downloads
General features
Moreless
Part no. 09 0474 89 08
Connector design Female panel mount connector
Type standard DIN EN 61076-2-106
Version Connector socket straight
Connector locking system screw
Termination solder
Degree of protection IP40
Cross-sectional area 0.75 mm² / AWG 18
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 8.91
Customs tariff number 85369010
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 500 V
Rated current 5.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance unshielded
Housing material Zinc die-cast nickel-plated
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number da4cdd48-92b3-4108-b299-2fa48d279392
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  6. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
