Ordernummer	31 5234 300 000 Alternativt ordernummer: 31 1313 300 000
Observera	Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right. mehr
Anslutningsdesign	Female solenoid valve connector
Tyyppistandardi	DIN EN 175301-803
Kaapelin pituus	3 m (Other lengths are available on request.)
Versio	Solenoid valve connectors
Kontaktlåsning	Central bolt
Anslutningstyp	moulded on the cable
Typ av skydd	IP67
Liitännän poikkileikkaus	0.75 mm² / AWG 18
Begränsa temperaturen från / till	-25 °C / 80 °C
Mekanisk livslängd	> 50 Mating cycles
Vikt (gr)	200
Tulltaxenummer	85444290

Märkspänning	230 V
Märkd impulsspänning	4000 V
Märkström	10.0 A
Isoleringsmotstånd	≥ 10¹⁰ Ω
Grad	3
Överspänningskategori	III
Gruppen isolerande material	I
EMC lämplighet	unshielded

Materialbostäder	PBT
Material Kontakt kropp	PA
Materialkontakt	CuSn (bronze)
Kontaktyta	Sn (tin)
REACH SVHC	None (No pollutants)
PFAS-yhdisteiden esiintyminen	SCIP-number not available

Pienjännitedirektiivit	EN 60529:1991
RoHS-direktiivi	EN IEC 63000:2018

eCl@ss 11.1	27-06-03-11
ETIM 9.0	EC002638

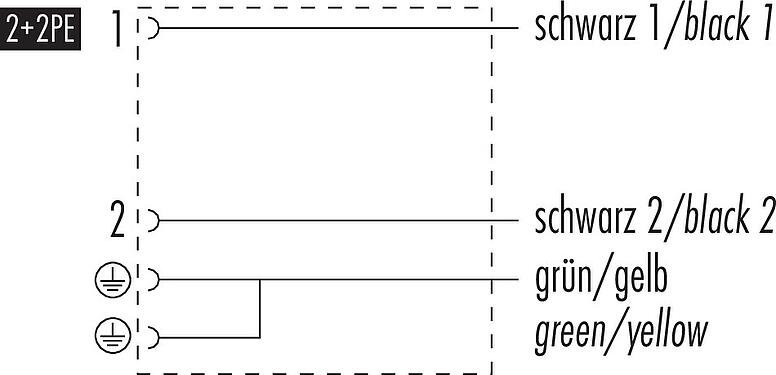

Female solenoid valve connector, Contacts: 2+2PE, unshielded, moulded on the cable, IP67, PUR, black, 3 m

Size A, series 210, Automation Technology - Solenoid Valve Connectors
